N8UE1+2/12.5 Type 1+2 AC Surge Protection Device

Name: N8UE1+2/12.5 Type 1+2 AC Surge Protection Device | Wanze
Brand: Wanze

Description

Designed for high-energy surge environments, the N8UE1+212.5 is a robust Type 1+2 SPD that handles both direct lightning strikes and switching transients. It offers an impressive impulse discharge current of 12.5kA (10/350μs) and a maximum discharge current of 50kA (8/20μs), ensuring superior protection for critical equipment. With a nominal discharge current of 15kA, a voltage protection level of 1.8kV, and a response time ≤100ns, it delivers reliable performance across a wide temperature range (–40℃ to +85℃) and altitudes up to 5000m. Available in 1P–4P configurations, it mounts easily on a 35mm DIN rail and supports backup fuses up to 125A. The flame-retardant UL 94 V-0 housing and flexible terminal compatibility (1.5–35mm² cables) make installation secure and versatile. IP20 rated for indoor use.

Request a quote Browse all products

Technical Data

Operating Temperature Range	-40 ℃～85 ℃
Permissible Operating Humidity	5 %～95 %
Atmospheric pressure and altitude	-500 m ~ +5000 m
Model NO.	N8UE1+2/12.5
SPD Type	Type 1+2

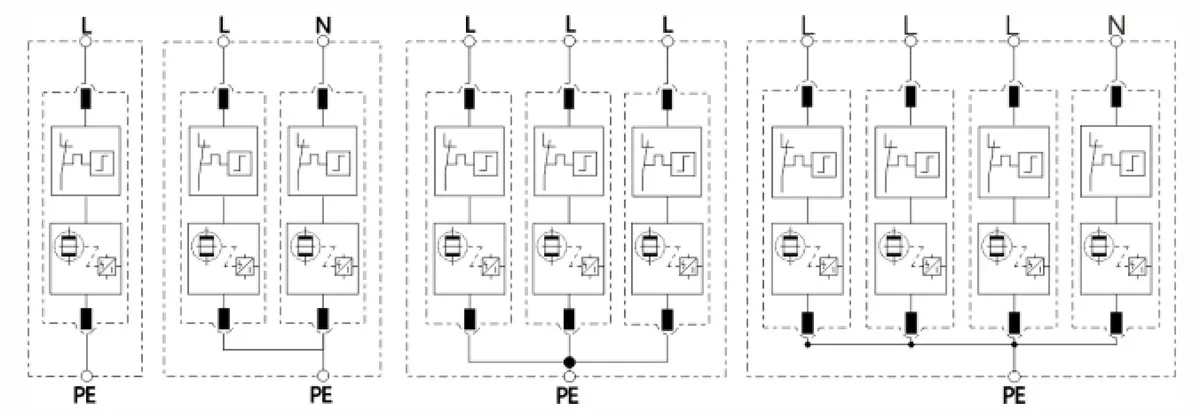

Protection Mode	L1/2/3/N-PE
Maximum Continuous Operating Voltage (AC)Uc	275 V
Frequency	50/60 Hz
Nominal Discharge Current In (8/20 μs)	15 kA
Maximum Discharge Current Imax (8/20 μs)	50 kA
Impulse Discharge Current Iimp (10/350 μs)	12.5 kA
Voltage Protection Level Up	1.8 kV

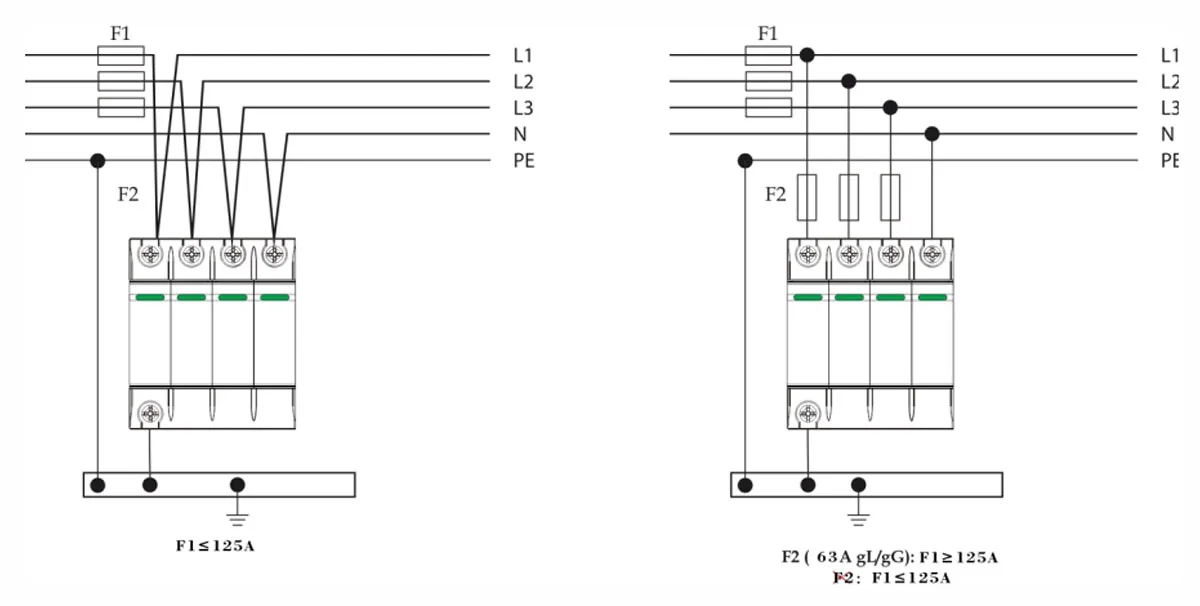

Back-Up Fuse (max)	125 A gL/gG
Response Time tA	≤100 ns
Terminal Screw Torque	MC cable: 1.5 mm²～25 mm² SC cable: 1.5 mm²～35 mm²
Degree of Protection	IP 20

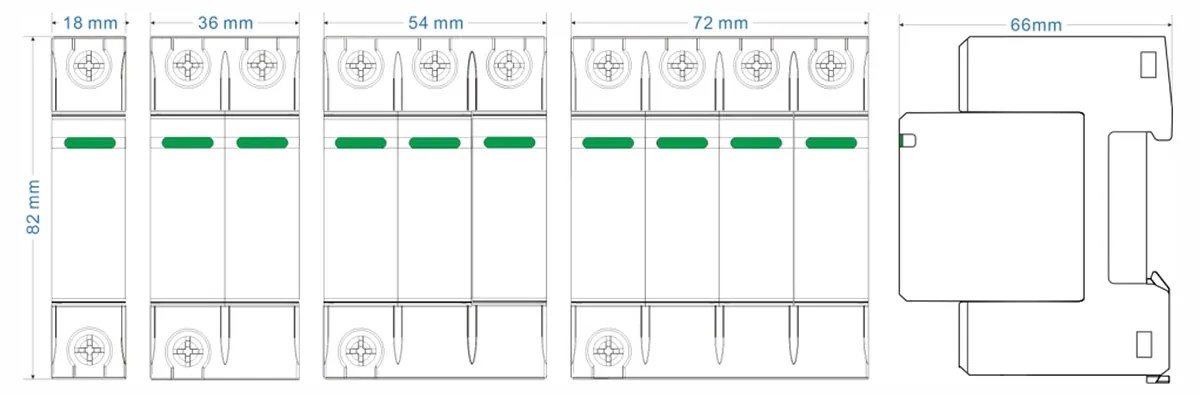

Dimensions	1P:82±1mm×18±1mm×66±1mm (L×W×H) 2P:82±1mm×36±1mm×66±1mm (L×W×H) 3P:82±1mm×54±1mm×66±1mm (L×W×H) 4P:82±1mm×72±1mm×66±1mm (L×W×H)
Mounting	35 mm guide rail
Housing material	UL 94 V-0
