Product overview

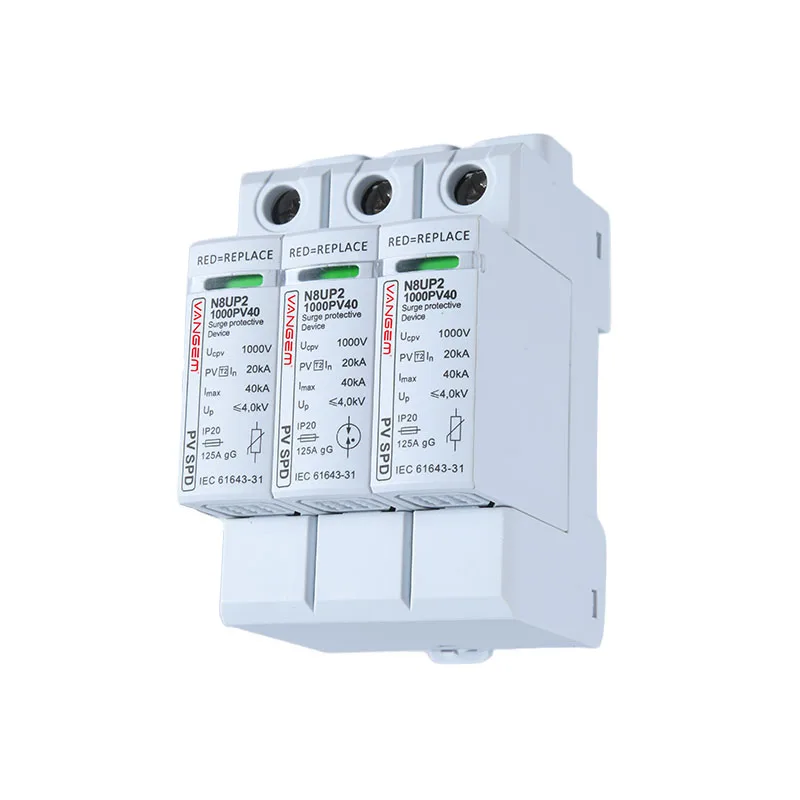

N8UP2-1000PV40 Type 2 Solar PV Surge Protection Device
The N8UP2-1000PV40 is a Type 2 photovoltaic surge protection device. Review the published 1000 V DC operating-voltage limit, discharge ratings, protection mode and original drawings before requesting a configuration-specific document set.
(DC+/DC− −PE)≤100 ns
Published parameters
Technical data
These values are copied from the published product page. Confirm the system, protective coordination, installation environment and destination-market requirements before ordering.
| Item | Published parameter |
|---|---|
| Product and electrical ratings | |
| Model NO. | N8UP2-1000PV40 |
| SPD Type | Type 2 |
| Protection Mode | DC+/DC− −PE |
| Maximum Continuous Operating Voltage (AC)Uc pv | 1000 V DC |
| Nominal Discharge Current In (8/20 μs) | 20 kA |
| Maximum Discharge Current Imax (8/20 μs) | 40 kA |
| Voltage Protection Level Up | 4 kV |
| Response Time tA | (DC+ −DC−)≤25 ns (DC+/DC− −PE)≤100 ns |
| Installation | |
| Back-Up Fuse (max) | 125 A gL/gG |
| Terminal Screw Torque | MC cable: 1.5 mm²~25 mm² SC cable: 1.5 mm²~35 mm² |
| Degree of Protection | IP 20 |
| Mounting | 35 mm guide rail |
| Mechanical and environmental | |
| Operating Temperature Range | -40 ℃~85 ℃ |
| Permissible Operating Humidity | 5 %~95 % |
| Atmospheric pressure and altitude | -500 m ~ +5000 m |

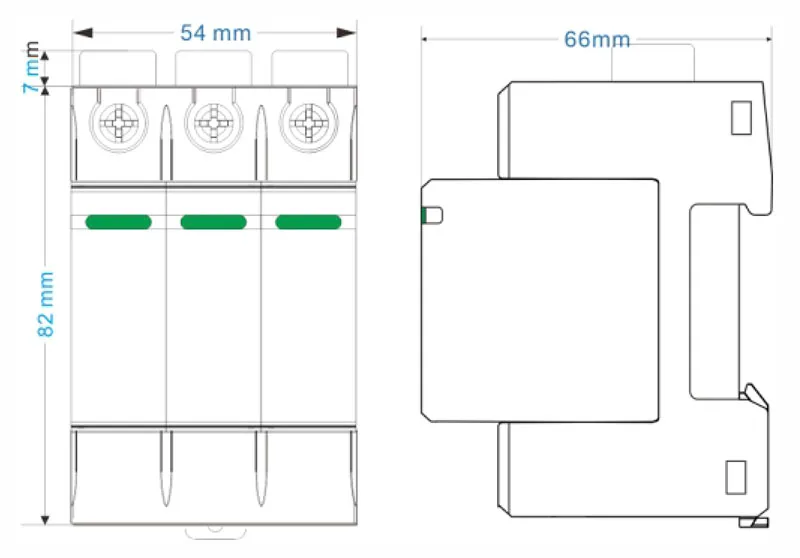

| Dimensions | 3P:90±1mm×54±1mm×66±1mm (L×W×H) |
| Housing material | UL 94 V-0 |
Project screening
Review the model before quotation
Use the published table and drawings to screen this photovoltaic surge protection device before requesting a project document set.
- System voltage and protection modeConfirm that the installation matches the published 1000 V DC operating-voltage limit and the intended DC+/DC− −PE protection mode.
- Discharge coordinationCompare 20 kA nominal discharge current, 40 kA maximum discharge current and 4 kV voltage protection level with the project design.
- Installation environmentReview the 35 mm guide rail mounting, IP 20 protection, conductor range, temperature and altitude limits.
- Configuration and documentsKeep the exact model, variant, pole or string arrangement and drawing set visible in the request.
Certification scope, model-specific reports, price, MOQ, lead time and customization availability require quotation confirmation.
Original product media
Engineering drawings

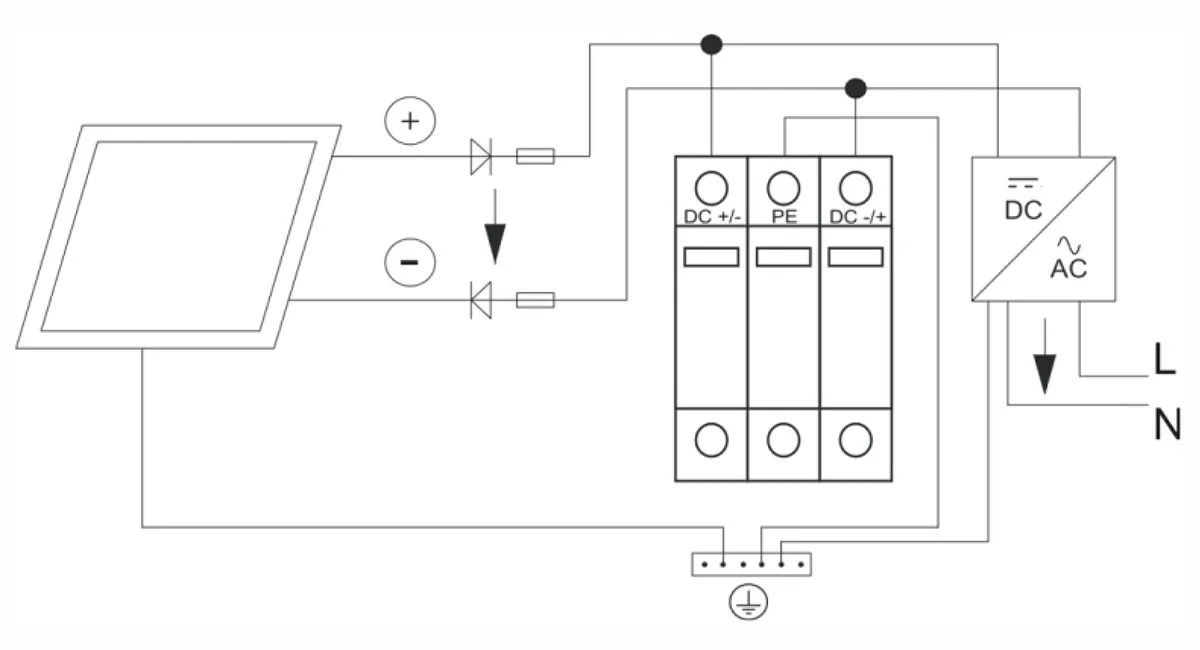

The native schematic, outline dimensions and wiring diagram remain the reference drawings for installation review. Click a sheet to enlarge it in the current page.
Supplier evidence
Qualifications & OEM/ODM
About Us and Quality Control provide company-level supplier evidence. They do not replace configuration-specific certificates or test reports for the N8UP2-1000PV40.
Product design and sample validation
Company-level product planning and validation context from About Us. Sample review and engineering evidence support the supplier overview.
ISO 9001
Company quality-system material; not model-specific certification.
N8UE2 test report
Confirm the selected N8UP2-1000PV40 configuration and report scope.


Assembly and process control
Supplier-level production and quality evidence, not a model performance claim. Includes assembly and quality review context.
OEM/ODM review. ONESPD publishes company-level product-range support. For this model, confirm logo, labeling, packaging and document requirements with the supplier before ordering.
Documents and enquiry
Request the file set for the selected configuration
Use the site’s real support routes for the catalog, selection guide, certificates, reports and project enquiry. Preview material is not treated as a formal model document.

Before requesting documents, confirm the pole arrangement, destination market and intended installation.
- Technical data and selectionRequest the published ratings, installation limits and the exact pole configuration.
- Engineering drawingsInclude the schematic, outline dimensions and wiring reference required for review.
- Compliance and quotation scopeConfirm certificate or report coverage, quantity, target market, labeling and packaging requirements.
Configuration review
Share system voltage, phase arrangement, pole count and installation environment.
Document request
Ask for the technical sheet, report scope and destination-market documents.
OEM/ODM brief
Include label, packaging, quantity and selected configuration requirements.
Quotation enquiry
Use Contact Us to confirm the exact configuration before ordering.
Project enquiry
Need a document pack or configuration quote?
Send the system details, quantity, target market and certificate requirements. The final N8UP2-1000PV40 scope remains subject to supplier confirmation.
Buyer FAQ
Frequently asked questions
Which system should the N8UP2-1000PV40 be matched to?
Confirm the published operating-voltage limit, protection mode, discharge ratings and installation environment against the project design.
How should the configuration be selected?
Use the original technical table and drawings to confirm the exact variant, pole or string arrangement, conductor route and enclosure space.
Which documents should be requested?
Request the technical sheet, original drawings, certificate scope and model-specific report for the configuration included in the quotation.
