N8UF2+3-15 Type 2+3 AC Surge Protection Device

Name: N8UF2+3-15 Type 2+3 AC Surge Protection Device | Wanze
Brand: Wanze

Description

The N8UF2+3-15 is a versatile Type 2+3 surge protection device, available in standard and NPE versions, designed to safeguard sensitive electronics from transient overvoltages caused by switching events and lightning strikes. The standard model features a maximum discharge current of 15kA (8/20μs) , a nominal discharge current of 5kA, a composite wave open-circuit voltage of 10kV (1.2/50μs) , and an ultra-low voltage protection level of 1.25kV with response time ≤25ns. The NPE variant adds a 12.5kA impulse discharge current (10/350μs) for enhanced N–PE protection, with a slightly longer response time ≤100ns. Available in 2P and 4P configurations, it mounts on a 35mm DIN rail and supports backup fuses up to 125A. The flame-retardant UL 94 V-0 housing and wide terminal compatibility (1.5–35mm² cables) ensure secure and flexible installation. Operates reliably from –40℃ to +85℃ and at altitudes up to 5000m. IP20 rated for indoor use.

Request a quote Browse all products

Technical Data

Operating Temperature Range	-40 ℃~85 ℃
Permissible Operating Humidity	5 %~95 %
Atmospheric pressure and altitude	-500 m ~ +5000 m
Model NO.	N8UF2+3-15	N8UF2+3-15-NPE
SPD Type	Type 2+3

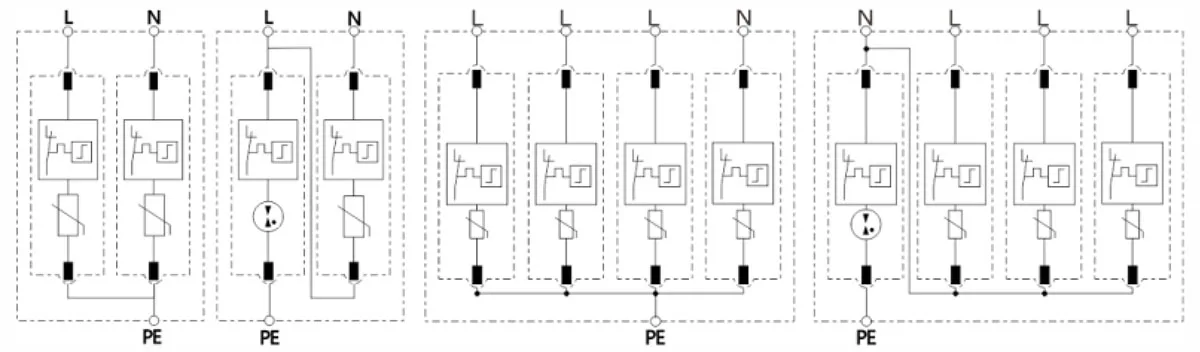

Protection Mode	L1/2/3/N-PE	L1/2/3−N, N−PE
Maximum Continuous Operating Voltage (AC)Uc	275 V
Frequency	50/60 Hz
Nominal Discharge Current In (8/20 μs)	5 kA
Maximum Discharge Current Imax (8/20 μs)	15 kA
composite wave open circuit voltage UOC (1.2/50 μs)	10 kV
Impulse Discharge Current Iimp (10/350 μs)		12.5 kA
Voltage Protection Level Up	1.25 kV

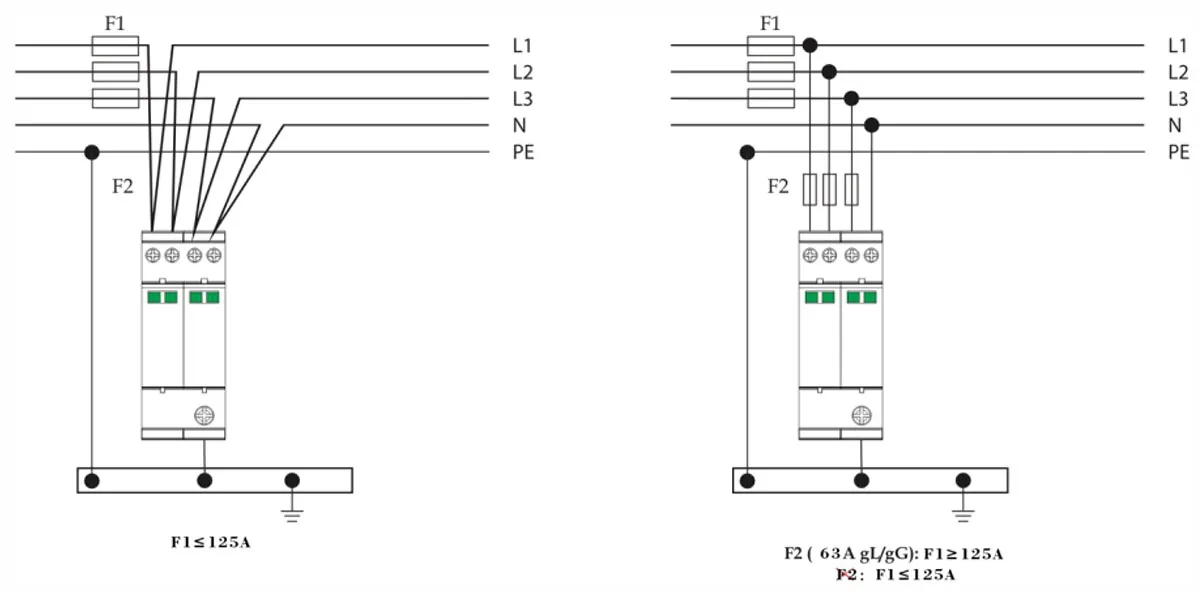

Back-Up Fuse (max)	125 A gL/gG
Response Time tA	≤ 25 ns	≤ 100 ns
Terminal Screw Torque	MC cable: 1.5 mm²~25 mm² SC cable: 1.5 mm²~35 mm²
Degree of Protection	IP 20

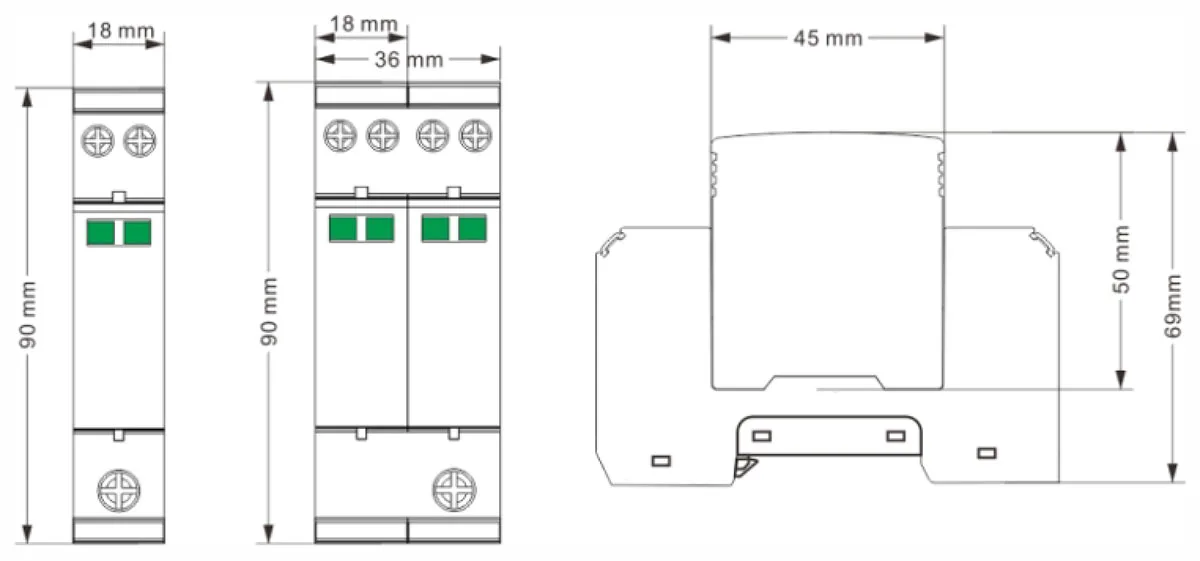

Dimensions	2P:90±1mm×18±1mm×66±1mm (L×W×H) 4P:82±1mm×36±1mm×66±1mm (L×W×H)
Mounting	35 mm guide rail
Housing material	UL 94 V-0
