N8UE2-40 Type 2 AC Surge Protection Device

Description

Type 2 AC surge protection for indoor distribution panels, available in 1P–4P configurations for 35 mm DIN-rail mounting.

Imax
40 kA
In
20 kA
Up
1.5 kV

Before ordering: confirm the system voltage, pole arrangement, back-up protection, and required documents.

Product overview

N8UE2-40 Type 2 AC Surge Protection Device

The N8UE2-40 is a Type 2 AC surge protection device for low-voltage systems and DIN-rail installations. Review the published electrical ratings, installation limits and original drawings before selecting this surge protective device and requesting the configuration-specific document set.

Maximum discharge current40 kA at 8/20 μs
Nominal discharge current20 kA at 8/20 μs
Protection level / response1.5 kV / ≤25 ns

Published parameters

Technical data

These values are copied from the published product page. Confirm the actual system, protective coordination, installation environment and destination-market requirements before ordering.

Item Published parameter
Product and electrical ratings
Model NO. N8UE2-40
SPD Type Type 2
Protection Mode L1/2/3/N-PE
Maximum Continuous Operating Voltage (AC) Uc 275 V AC
Frequency 50/60 Hz
Nominal Discharge Current In (8/20 μs) 20 kA
Maximum Discharge Current Imax (8/20 μs) 40 kA
Voltage Protection Level Up 1.5 kV
Response Time tA ≤25 ns
Installation
Back-Up Fuse (max) 125 A gL/gG
Terminal cable range 1.5 mm²–25 mm² / 1.5 mm²–35 mm²
Degree of Protection IP20
Mounting 35 mm guide rail
Housing material UL 94 V-0
Mechanical and environmental
Dimensions 1P: 82±1 × 18±1 × 66±1 mm
2P: 82±1 × 36±1 × 66±1 mm
3P: 82±1 × 54±1 × 66±1 mm
4P: 82±1 × 72±1 × 66±1 mm
Operating Temperature Range -40 °C to +85 °C
Permissible Operating Humidity 5% to 95%
Atmospheric pressure and altitude -500 m to +5000 m

Project screening

Review the model before quotation

The model number alone is not enough to confirm suitability. Use these four checks with the published table and drawings.

  1. System voltage and protection modeConfirm that the AC system matches the published 275 V maximum continuous operating voltage and the intended protection mode.
  2. Discharge coordinationCompare In, Imax, Up, waveform and back-up protection with the project design and local requirements.
  3. Pole arrangementChoose 1P–4P only after confirming phase, neutral, panel width, wiring route and enclosure space.
  4. Installation environmentReview the 35 mm guide rail, IP20 indoor use, conductor range, temperature, humidity and altitude limits.
Quotation confirmation

Certification scope, model-specific reports, price, MOQ, lead time and customization availability require quotation confirmation.

Original product media

Engineering drawings

The native schematic, outline dimensions and wiring diagram remain the reference drawings for installation review. Open each sheet at full size.

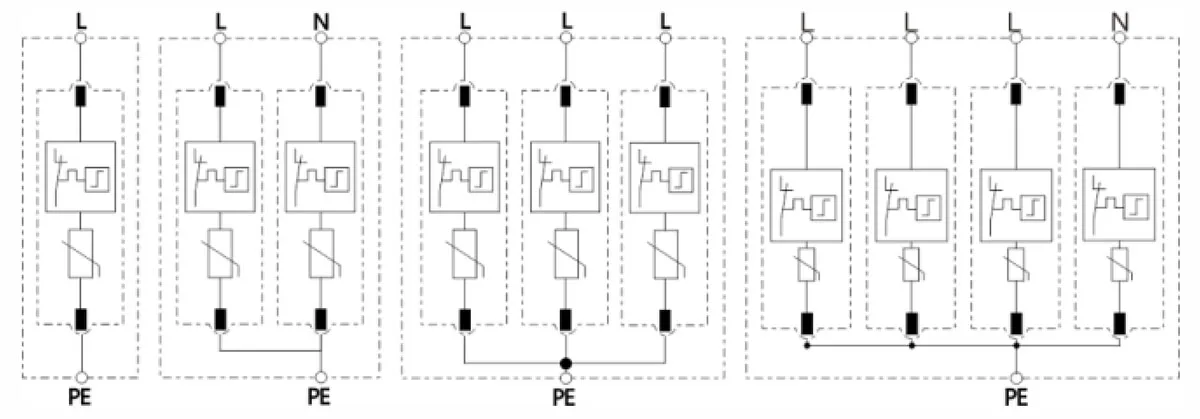

N8UE2-40 electrical schematic diagram
Schematic DiagramPublished electrical schematic.

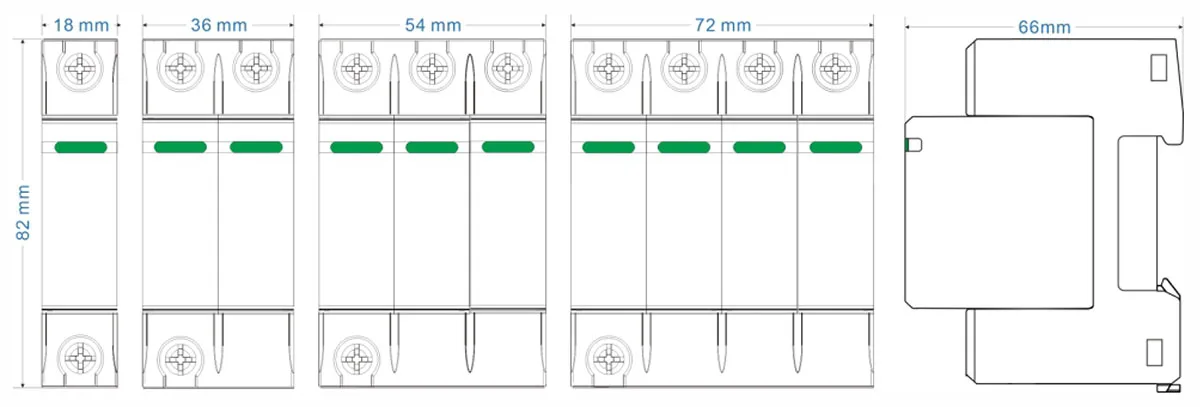

N8UE2-40 outline dimensions for 1P to 4P configurations
Outline DimensionsPublished dimensions for 1P–4P configurations.

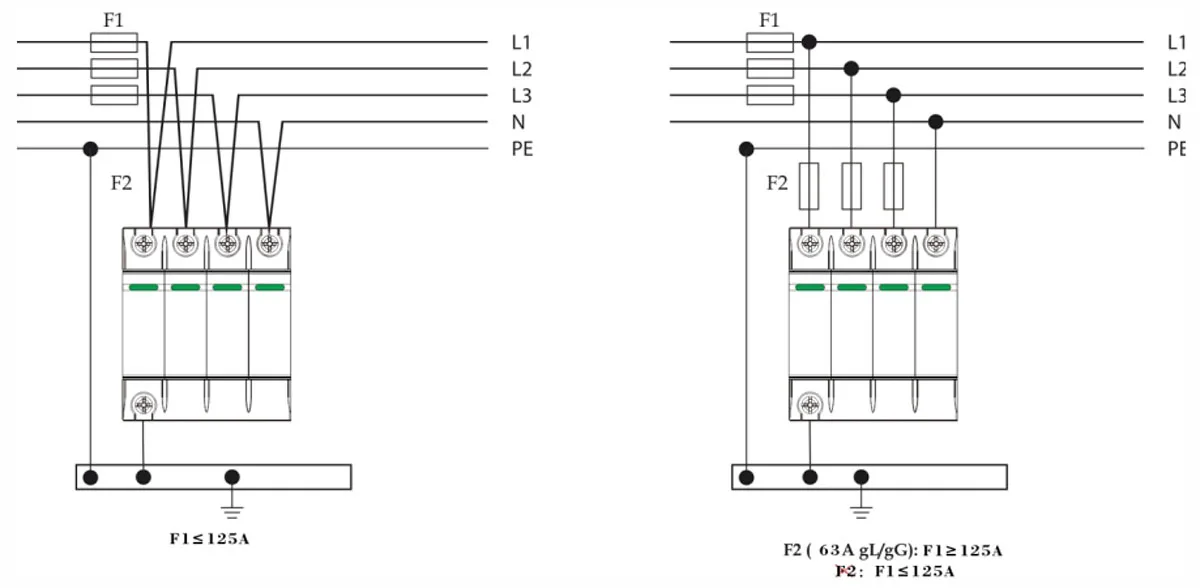

N8UE2-40 wiring diagram
Wiring DiagramPublished connection reference; confirm the selected pole configuration before installation.

Supplier evidence

Qualifications & OEM/ODM

About Us and Quality Control provide company-level supplier evidence. They do not replace configuration-specific certificates or test reports for the N8UE2-40.

Wanze Electric product design and testing workspace

Engineering

Product design and sample validation

Company-level product planning and validation context from About Us. Sample review and engineering evidence support the supplier overview.

Review About Us

ISO 9001 quality management certificate published by Wanze Electric

Quality system

ISO 9001

Company quality-system material; not model-specific certification.

TUV test report for the N8UE2 surge protection device series

Series document

N8UE2 test report

Confirm the selected N8UE2-40 configuration and report scope.

Wanze Electric assembly workstation for surge protection devicesEngineer reviewing surge protection test equipment in the Wanze quality laboratory
Manufacturing context

Assembly and process control

Supplier-level production and quality evidence, not a model performance claim. Includes assembly and quality review context.

OEM/ODM review. ONESPD publishes company-level product-range support. For this model, confirm logo, labeling, packaging and document requirements with the supplier before ordering.

Documents and enquiry

Request the file set for the selected configuration

Use the site’s real support routes for the catalog, selection guide, certificates, reports and project enquiry. Preview material is not treated as a formal model document.

Technical documents, surge protection devices and measuring tools arranged for configuration review
01

Configuration review

Share system voltage, phase arrangement, pole count and installation environment.

02

Document request

Ask for the technical sheet, report scope and destination-market documents.

03

OEM/ODM brief

Include label, packaging, quantity and selected configuration requirements.

04

Quotation enquiry

Use Contact Us to confirm the exact configuration before ordering.

Project enquiry

Need a document pack or configuration quote?

Send the system details, quantity, target market and certificate requirements. The final N8UE2-40 scope remains subject to supplier confirmation.

Request a quote

Buyer FAQ

Frequently asked questions

Is the N8UE2-40 intended for indoor installation?

The published degree of protection is IP20. Confirm the final enclosure, installation location and environmental requirements before ordering.

How should the pole configuration be selected?

The published range covers 1P–4P configurations. Selection depends on the phase and neutral arrangement, protection mode and available panel width.

Which documents should be requested?

Request the certificate scope, model-specific report, technical sheet and destination-market documents required for the configuration included in the quotation.
