N8UE1+2/7 Type 1+2 AC Surge Protection Device

Description

The N8UE1+2/7 is a Type 1+2 AC surge protection device for low-voltage distribution, with a 7 kA impulse discharge current, 50 kA maximum discharge current and 1.5 kV voltage protection level. It supports 1P–4P DIN-rail configurations; confirm the system and report scope before ordering.

Product overview

N8UE1+2/7 Type 1+2 AC Surge Protection Device

The N8UE1+2/7 is a Type 1+2 AC surge protection device for low-voltage distribution. As a DIN rail surge protection device, it should be matched to the published system voltage, discharge ratings and protection mode before the configuration-specific document set is requested.

Maximum discharge current50 kA at 8/20 μs
Nominal discharge current20 kA at 8/20 μs
Protection level / response1.5 kV / ≤25 ns

Published parameters

Technical data

These values are copied from the published product page. Use the table to compare this surge protective device with the project system, protective coordination, installation environment and destination-market requirements before ordering.

Item Published parameter
Product and electrical ratings
Model NO. N8UE1+2/7
SPD Type Type 1+2
Protection Mode L1/2/3/N-PE
Maximum Continuous Operating Voltage (AC) Uc 275 V AC
Frequency 50/60 Hz
Nominal Discharge Current In (8/20 μs) 20 kA
Maximum Discharge Current Imax (8/20 μs) 50 kA
Impulse / composite-wave rating 7 kA
Voltage Protection Level Up 1.5 kV
Response Time tA ≤25 ns
Installation
Back-Up Fuse (max) 125 A gL/gG
Terminal cable range 1.5 mm²–25 mm² / 1.5 mm²–35 mm²
Degree of Protection IP20
Mounting 35 mm guide rail
Housing material UL 94 V-0
Mechanical and environmental
Dimensions 1P: 82±1 × 18±1 × 66±1 mm
2P: 82±1 × 36±1 × 66±1 mm
3P: 82±1 × 54±1 × 66±1 mm
4P: 82±1 × 72±1 × 66±1 mm
Operating Temperature Range -40 °C to +85 °C
Permissible Operating Humidity 5% to 95%
Atmospheric pressure and altitude -500 m to +5000 m

Project screening

Review the model before quotation

The model number alone is not enough to confirm suitability. Use these four checks with the published table and drawings when reviewing this surge protective device.

  1. System voltage and protection modeConfirm that the AC system matches the published 275 V AC maximum continuous operating voltage and the intended protection mode.
  2. Discharge coordinationCompare the impulse rating, Imax, Up, response time and back-up protection with the project design. For a Type 1+2 surge protective device, confirm the incoming-lightning and switching-transient coordination before quotation.
  3. Pole arrangementChoose 1P–4P only after confirming phase, neutral, panel width, wiring route and enclosure space for the N8UE1+2/7 configuration.
  4. Installation environmentReview the 35 mm guide rail, IP20 indoor use, conductor range, temperature, humidity and altitude limits.
Quotation confirmation

Certification scope, model-specific reports, price, MOQ, lead time and customization availability require quotation confirmation.

Original product media

Engineering drawings

The native schematic, outline dimensions and wiring diagram remain the reference drawings for installation review. Open each sheet at full size.

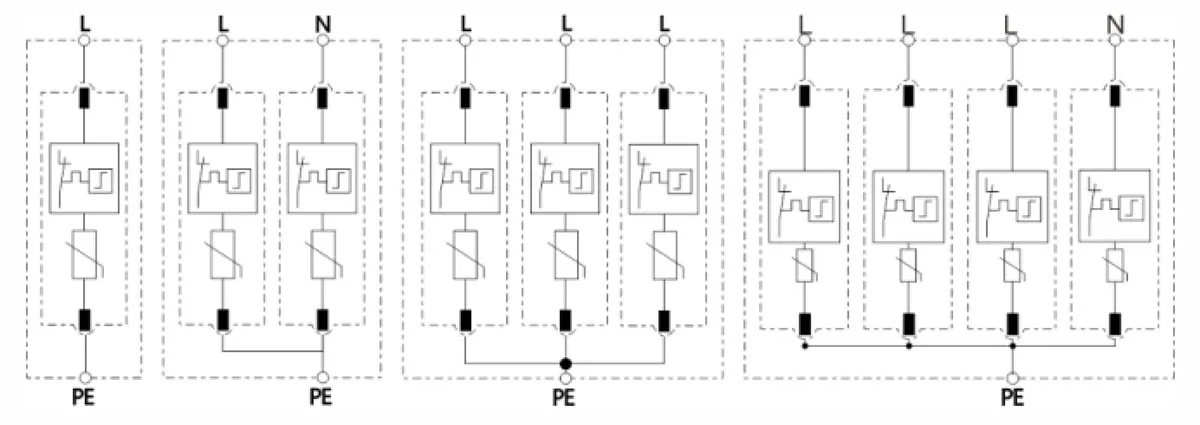

N8UE1+2/7 electrical schematic
Electrical SchematicPublished electrical schematic; use the selected configuration when checking incoming protection.

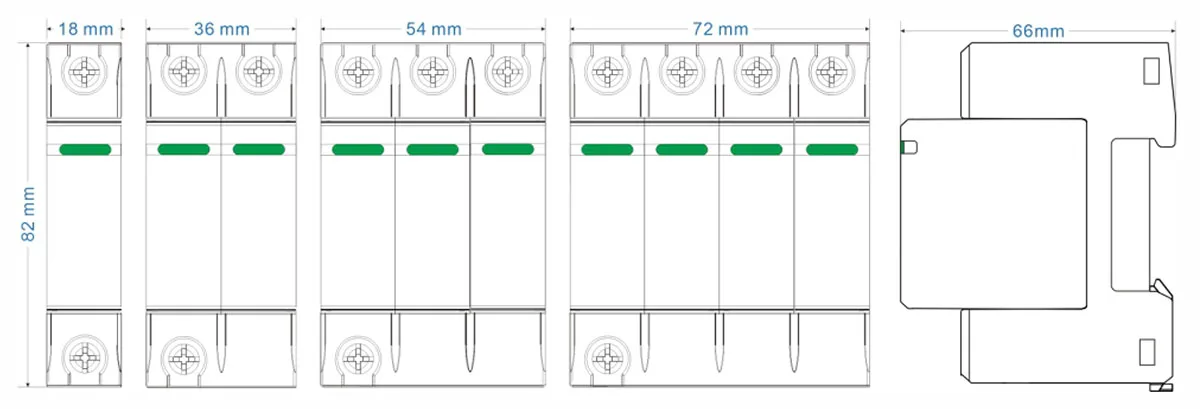

N8UE1+2/7 outline dimensions
Outline DimensionsPublished dimensions for the available pole configurations.

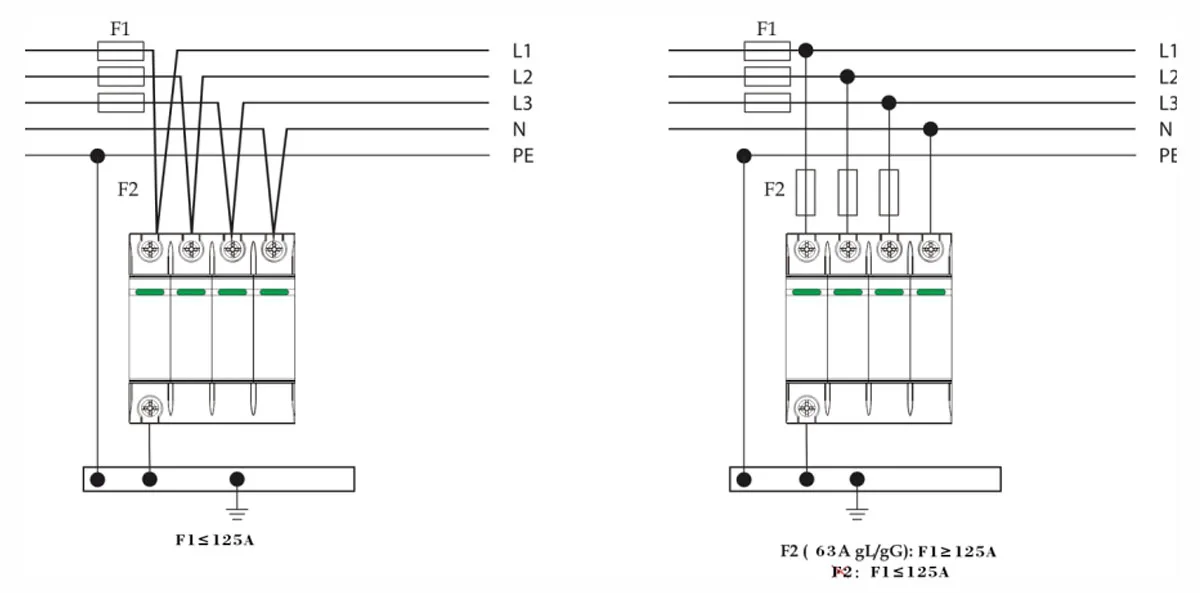

N8UE1+2/7 wiring diagram
Wiring DiagramPublished connection reference; confirm the selected pole configuration before installation.

Supplier evidence

Qualifications & OEM/ODM

About Us and Quality Control provide company-level supplier evidence. They do not replace configuration-specific certificates or test reports for the N8UE1+2/7.

Wanze Electric product design and testing workspace

Engineering

Product design and sample validation

Company-level product planning and validation context from About Us. Sample review and engineering evidence support the supplier overview.

Review About Us

ISO 9001 quality management certificate published by Wanze Electric

Quality system

ISO 9001

Company quality-system material; not model-specific certification.

N8UE1+2 surge protection device test report

Series document

N8UE1+2 test report

Confirm the selected N8UE1+2/7 configuration and report scope.

Wanze Electric assembly workstation for surge protection devicesEngineer reviewing surge protection test equipment in the Wanze quality laboratory
Manufacturing context

Assembly and process control

Supplier-level production and quality evidence, not a model performance claim. Includes assembly and quality review context.

OEM/ODM review. ONESPD publishes company-level product-range support. For this model, confirm logo, labeling, packaging and document requirements with the supplier before ordering.

Documents and enquiry

Request the file set for the selected configuration

Use the site’s real support routes for the catalog, selection guide, certificates, reports and project enquiry. Preview material is not treated as a formal model document.

Technical documents, surge protection devices and measuring tools arranged for configuration review
01

Configuration review

Share system voltage, phase arrangement, pole count and installation environment.

02

Document request

Ask for the technical sheet, report scope and destination-market documents.

03

OEM/ODM brief

Include label, packaging, quantity and selected configuration requirements.

04

Quotation enquiry

Use Contact Us to confirm the exact configuration before ordering.

Project enquiry

Need a document pack or configuration quote?

Send the system details, quantity, target market and certificate requirements. The final N8UE1+2/7 scope remains subject to supplier confirmation.

Request a quote

Buyer FAQ

Frequently asked questions

Is the N8UE1+2/7 intended for indoor installation?

The published degree of protection is IP20. Confirm the final enclosure, installation location and environmental requirements before ordering.

How should the pole configuration be selected?

The published range covers 1P–4P configurations. Selection depends on the phase and neutral arrangement, protection mode and available panel width.

Which documents should be requested for this surge protective device?

Request the certificate scope, model-specific report, technical sheet and destination-market documents required for the configuration included in the quotation.
