N8UF2-30 Type 2 AC Surge Protection Device

Description

N8UF2-30 Type 2 AC surge protection device with 30 kA maximum discharge current, 1.5 kV voltage protection level and 35 mm guide rail mounting. Confirm the published configuration before ordering.

Product overview

N8UF2-30 Type 2 AC Surge Protection Device

The N8UF2-30 is a Type 2 AC surge protection device. Review the published 275 V operating-voltage limit, discharge ratings, protection mode and original drawings before requesting a configuration-specific document set.

Maximum discharge current30 kA
Nominal discharge current15 kA
Protection level / response1.5 kV / ≤ 25 ns
≤ 100 ns

Published parameters

Technical data

These values are copied from the published product page. Confirm the system, protective coordination, installation environment and destination-market requirements before ordering.

Item Published parameter
Product and electrical ratings
Model NO. N8UF2-30
N8UF2-30-NPE
SPD Type Type 2
Protection Mode L1/2/3/N-PE
L1/2/3−N, N−PE
Maximum Continuous Operating Voltage (AC)Uc 275 V
Frequency 50/60 Hz
Nominal Discharge Current In (8/20 μs) 15 kA
Maximum Discharge Current Imax (8/20 μs) 30 kA
Impulse Discharge Current Iimp (10/350 μs) 12.5 kA
Voltage Protection Level Up 1.5 kV
Response Time tA ≤ 25 ns
≤ 100 ns
Installation
Back-Up Fuse (max) 125 A gL/gG
Terminal Screw Torque MC cable: 1.5 mm²~25 mm²SC cable: 1.5 mm²~35 mm²
Degree of Protection IP 20
Mounting 35 mm guide rail
Mechanical and environmental
Operating Temperature Range -40 ℃~85 ℃
Permissible Operating Humidity 5 %~95 %
Atmospheric pressure and altitude -500 m ~ +5000 m
Dimensions 2P:90±1mm×18±1mm×66±1mm (L×W×H)4P:82±1mm×36±1mm×66±1mm (L×W×H)
Housing material UL 94 V-0

Project screening

Review the model before quotation

Use the published table and drawings to screen this surge protective device before requesting a project document set.

  1. System voltage and protection modeConfirm that the installation matches the published 275 V operating-voltage limit and the intended L1/2/3/N-PE
    L1/2/3−N, N−PE protection mode.
  2. Discharge coordinationCompare 15 kA nominal discharge current, 30 kA maximum discharge current and 1.5 kV voltage protection level with the project design.
  3. Installation environmentReview the 35 mm guide rail mounting, IP 20 protection, conductor range, temperature and altitude limits.
  4. Configuration and documentsKeep the exact model, variant, pole or string arrangement and drawing set visible in the request.
Quotation confirmation

Certification scope, model-specific reports, price, MOQ, lead time and customization availability require quotation confirmation.

Original product media

Engineering drawings

The native schematic, outline dimensions and wiring diagram remain the reference drawings for installation review. Click a sheet to enlarge it in the current page.

N8UF2-30 Surge protector

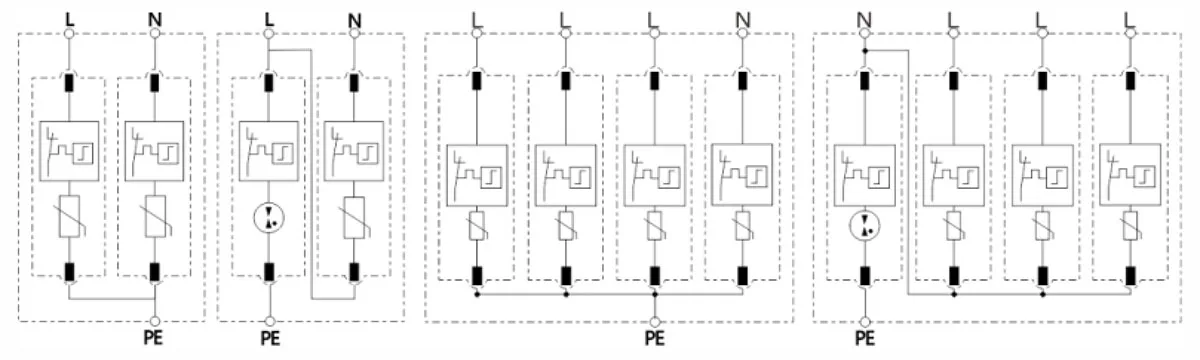

Electrical SchematicPublished electrical schematic; use the selected configuration when checking incoming protection.
N8UF2-30 Surge protector

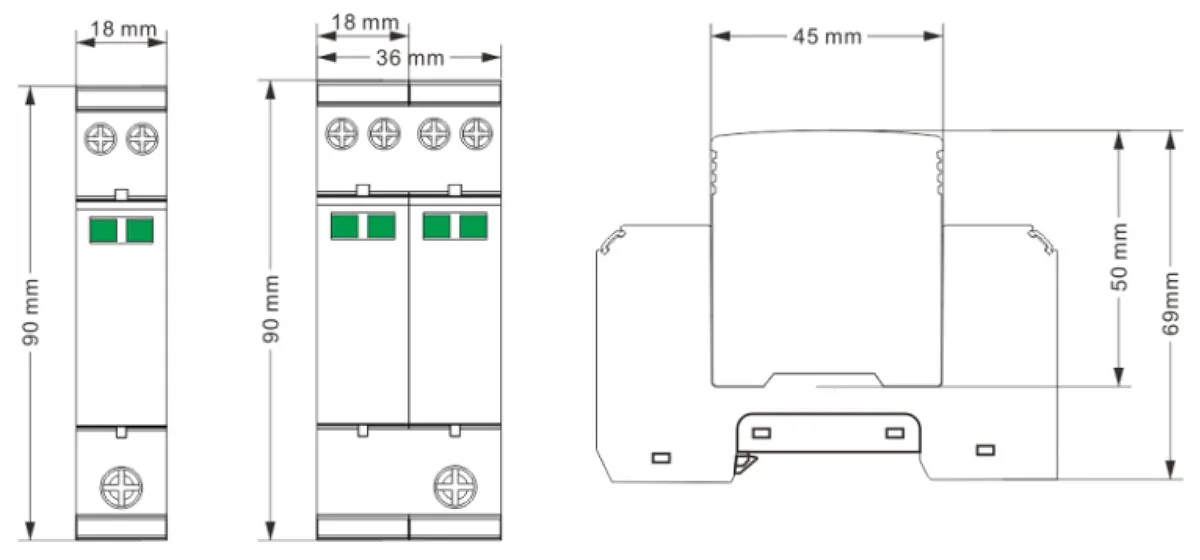

Outline DimensionsPublished dimensions for the available configurations.
N8UF2-30 Surge protector

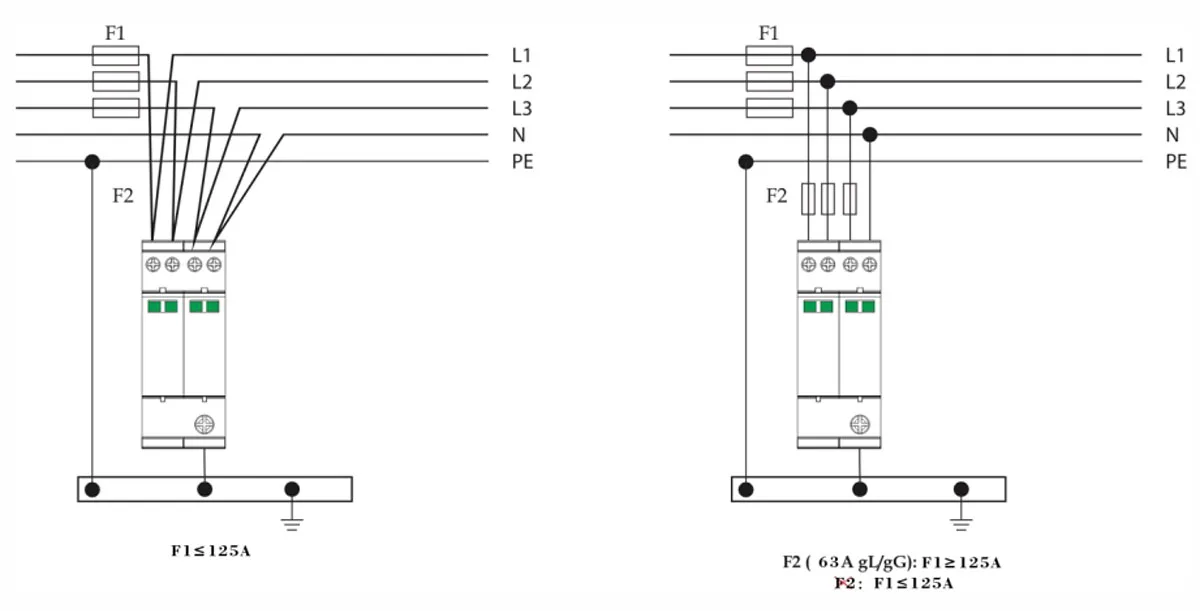

Wiring DiagramPublished connection reference; confirm the selected configuration before installation.
